How to setup Wifi of 600 Neo

How to setup Wifi of 600 Neo

1. Make sure that you already installed Magicard printer Driver. If you haven't installed the driver, please go to this link. (https://support.ccs.com.ph/portal/en/kb/articles/how-to-install-600-neo-driver)

2. Download the Generation tools


3. Click next until finish

4. Run Generation 2 delear tool.

Note: Make sure your printer is On and USB is connected

5. Click connect

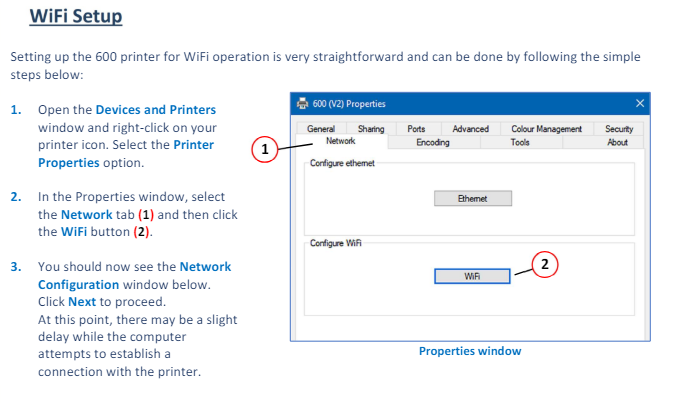

6. Select Network Tab

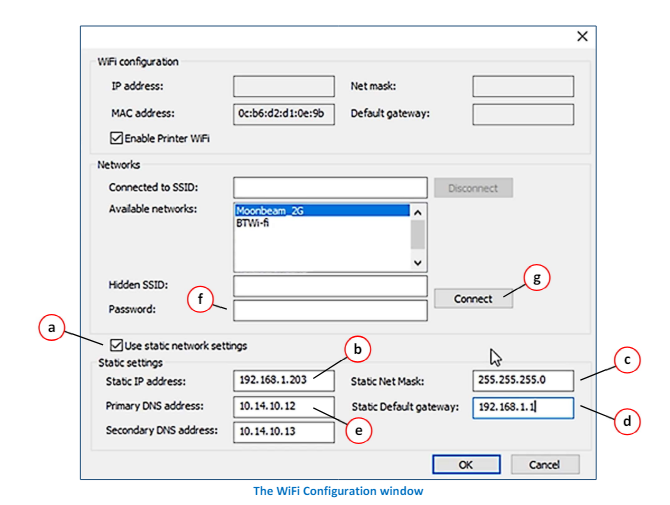

7. Check Wifi box. Select Wifi network and input password. Then click Connect button.


8. After connecting to wifi, Restart your printer spooler in Services or restart your printer.

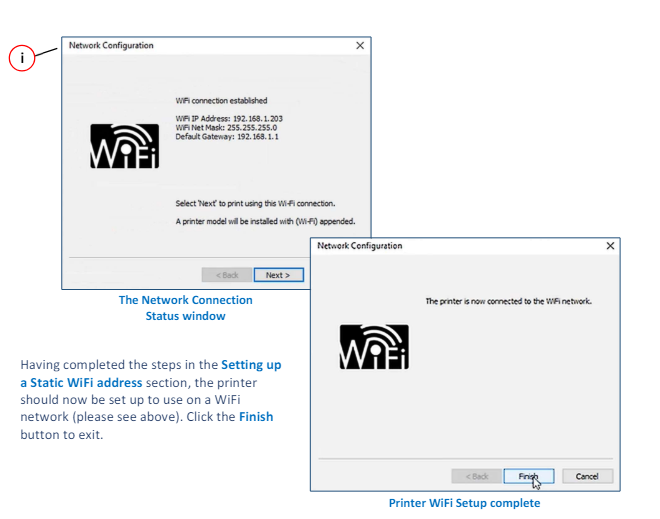

Printer should now be seen on Devices and Printers.


If problem occurs. Please try this troubleshooting guide. https://support.ccs.com.ph/portal/en/kb/articles/600-neo-wifi-not-showing
