How to Setup guard on patrol management system

How to Setup guard on patrol management system


Guard Setup - This is where you name the device for a certain Guard Officer.

1. Plug the registered reader on the PC (Please see article: How to connect register WM-5000V4S and WM-5000V5 device at Patrol Management Systemfor registering of reader tutorial)

2. Click "Basic Operations"

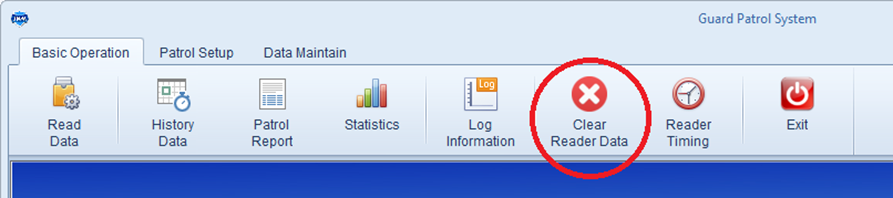

3. Click “Clear Reader Data” (this will clear all data logs to the reader)


4. Scan RF tag or RF I.D of the Patrol Guard
5. Connect the reader to your PC
6. Go to Basic operation and click Read data

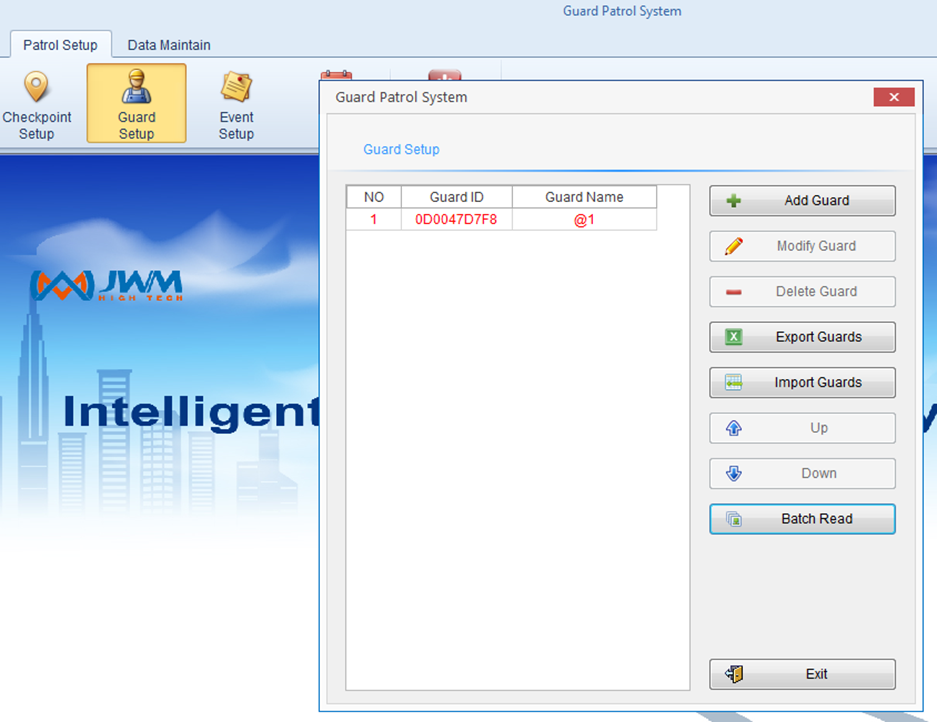

7. Go to Patrol Setup>Guard setup and click batch read

        (You can modify the guard name by clicking the modify guard)
8. Click Exit

~End
