How to connect topaz signature pad to microsoft word

How to connect topaz signature pad to microsoft word

To use a Topaz Signature Pad with Microsoft Word, you must install the required software and Microsoft Office plug-ins.

Important: Install SigPlus before installing the Microsoft Office plug-ins. Follow the steps below in the correct order.

Step 1: Install SigPlus

  1. Open the CCS Support Center guide:

    How to Install SigPlus

  2. Follow the instructions to download and install SigPlus.
  3. Complete the installation before proceeding to the next step.

Step 2: Download the Microsoft Office Plug-ins

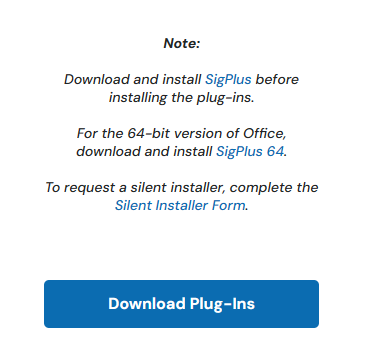

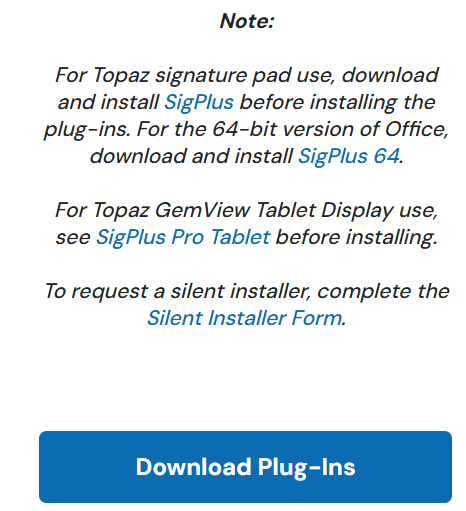

  1. Visit the Topaz Systems software download page:

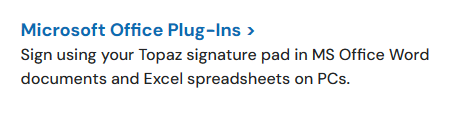

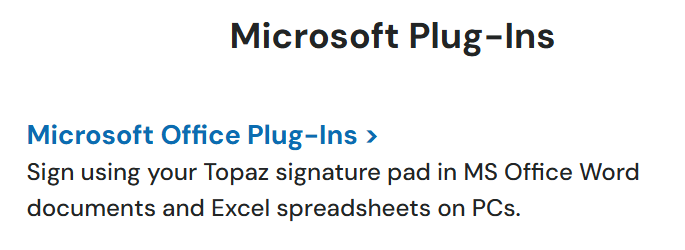

  2. Locate and select Microsoft Office Plug-Ins.
  3. Click Download Plug-ins.
  4. Once the download is complete, open your Downloads folder.

  5. Locate and run the installer:

    topazmsofficeplugins3.exe

Step 3: Install the Plug-ins

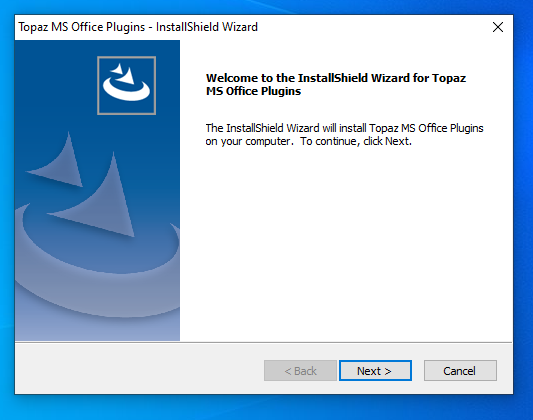

  1. When the installation wizard opens, click Next.

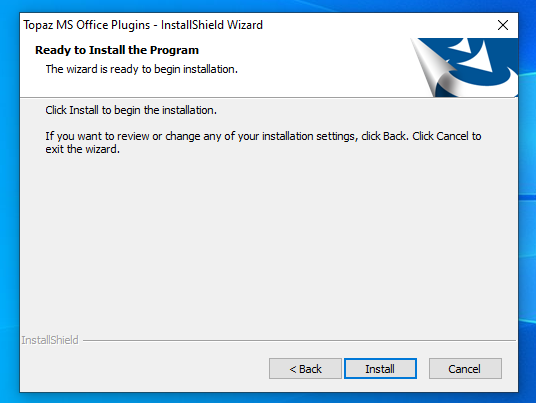

  2. Click Install to begin the installation.
  3. Wait for the installation to finish.
  4. Click Finish to close the installer.


Step 4: Open Microsoft Word

  1. Launch Microsoft Word.

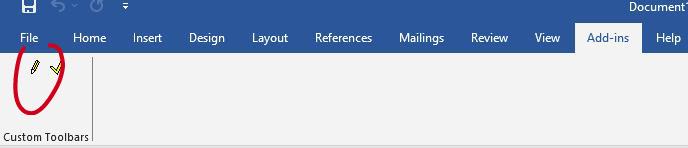

  2. Open the Add-ins tab or menu.
  3. Look for the pencil icon associated with the Topaz signature plug-in.
  4. Click the pencil icon to open the signature interface.



Step 5: Open the Signature Interface

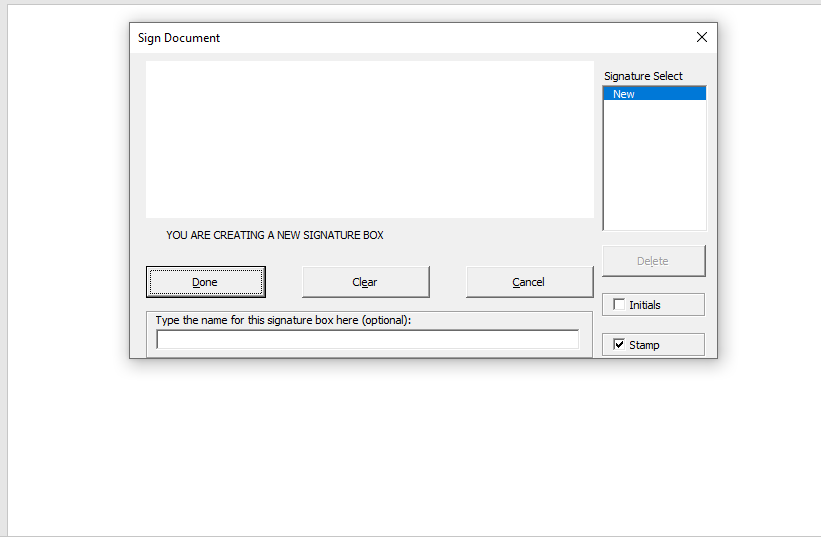

After clicking the pencil icon, the Topaz signature interface should appear.

Follow the on-screen instructions to proceed with capturing a signature using your Topaz Signature Pad.
























Troubleshooting

If the Topaz Signature Pad does not work in Microsoft Word:

  • Confirm that SigPlus was installed before the Microsoft Office plug-ins.
  • Check that the Microsoft Office plug-ins were installed successfully.
  • Restart Microsoft Word and check the Add-ins menu again.

If the issue persists, contact CCS Support for further assistance.
