Misaligned Printout on DNP

Misaligned Printout on DNP

Info

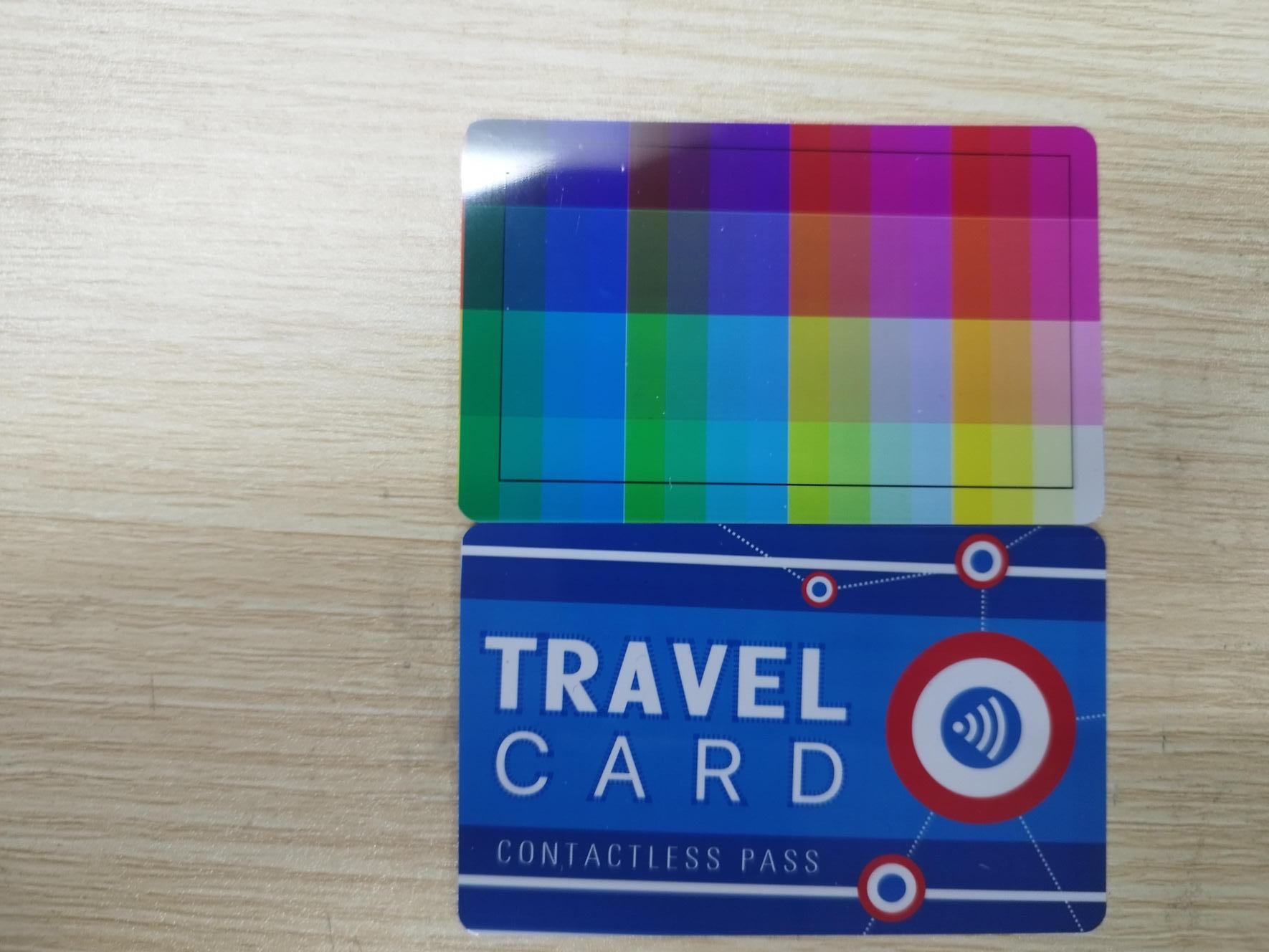

Sample of Misaligned Printout












To fix this,
1. Remove Retransfer cartridge

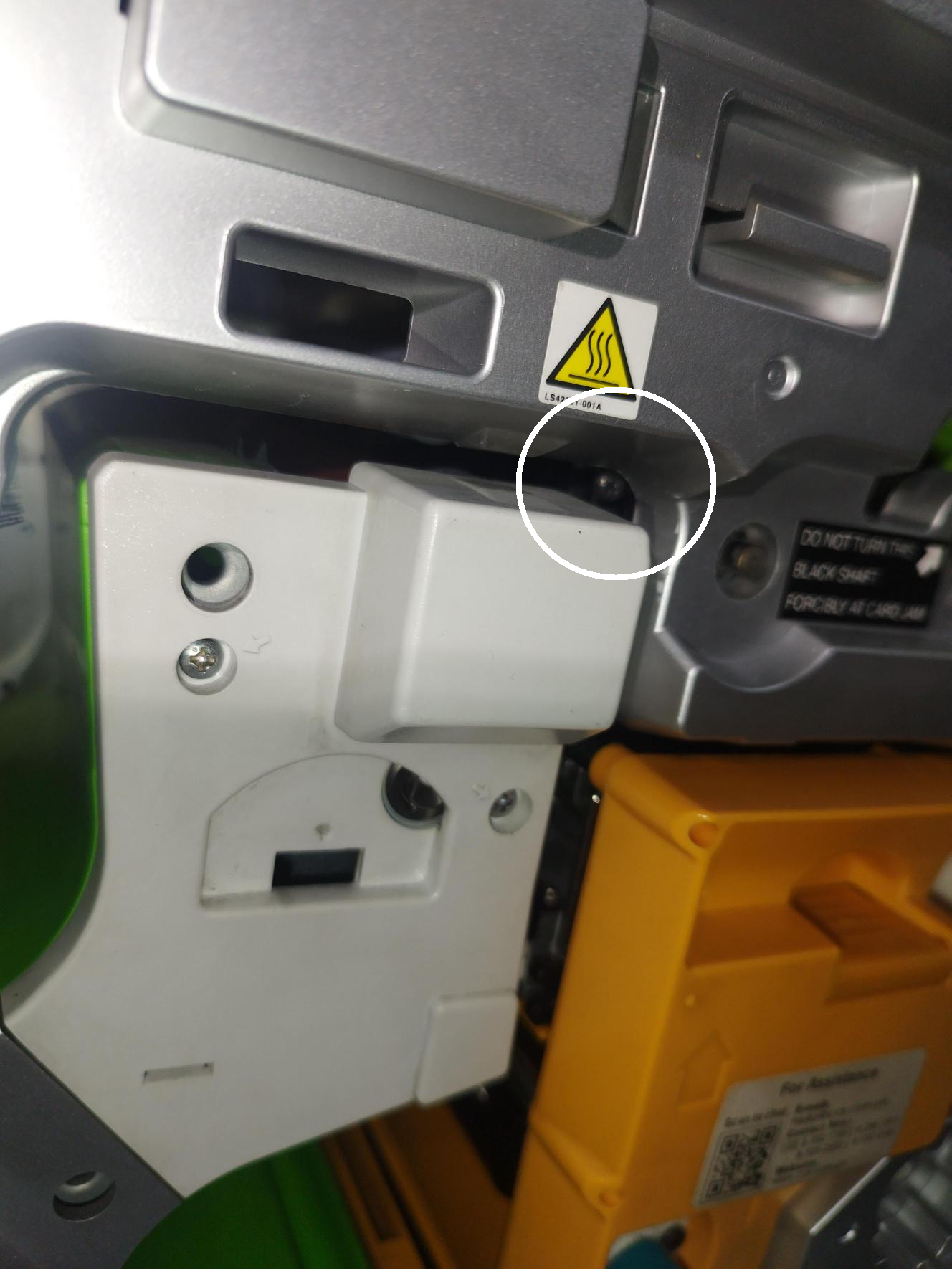

2. Look for a screw on the upper right corner of Retransfer cartridge slot.
Please see below image for reference.


3. Rotate the screw counter clockwise 5 times and print a testprint to check the alignment.
If still misaligned, rotate another 1 counter clockwise print a testprint, do this unltil card printout is aligned.
