How to Use Promag TS50 RFID Scanner (Beginner’s Guide)

How to Use Promag TS50 RFID Scanner (Beginner’s Guide)

1. Connecting the Device

  • Plug the TS50 scanner into your PC/laptop via USB.

  • Most models are plug-and-play, meaning Windows (and some Linux) auto-installs the driver.

2. Testing the Scanner

  • Open a text editor (like Notepad or MS Word).

  • Place an RFID card/tag near the scanner.

  • If it’s working, the card number/code should appear instantly on your screen.

  • By default, the TS50 works like a keyboard emulator (it "types" the card ID wherever your cursor is).


Promag TS50 Features

TS50 supports following Reader Modes.

Reader Mode
Description
Read
Use specified format to decode tag data.
For example, use EPC format to decode tag data. If it succeeded, it sends the
decoded data in keystrokes.
Analyze
Parse tag data to get its information.
For example, manufacture, model and memory capacity. The tag memory data will
also output to host.
Encode
Encode data in specified format and then write to tags.

How to use TS50 Utility Software

1. Install & Connect

  • Connect the TS50 to your PC via USB. Wait for the green power indicator and any required drivers to install automatically.

  • Launch the TS50 utility software you downloaded.

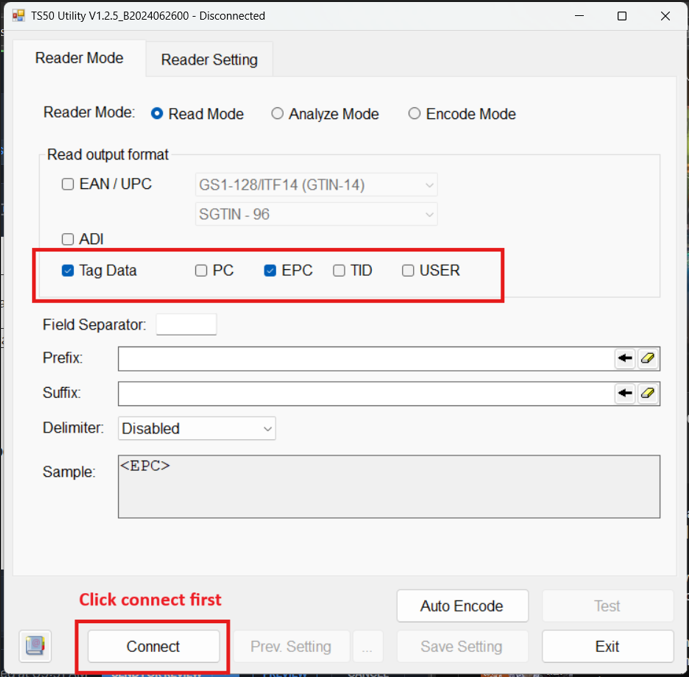

Read Mode Setting

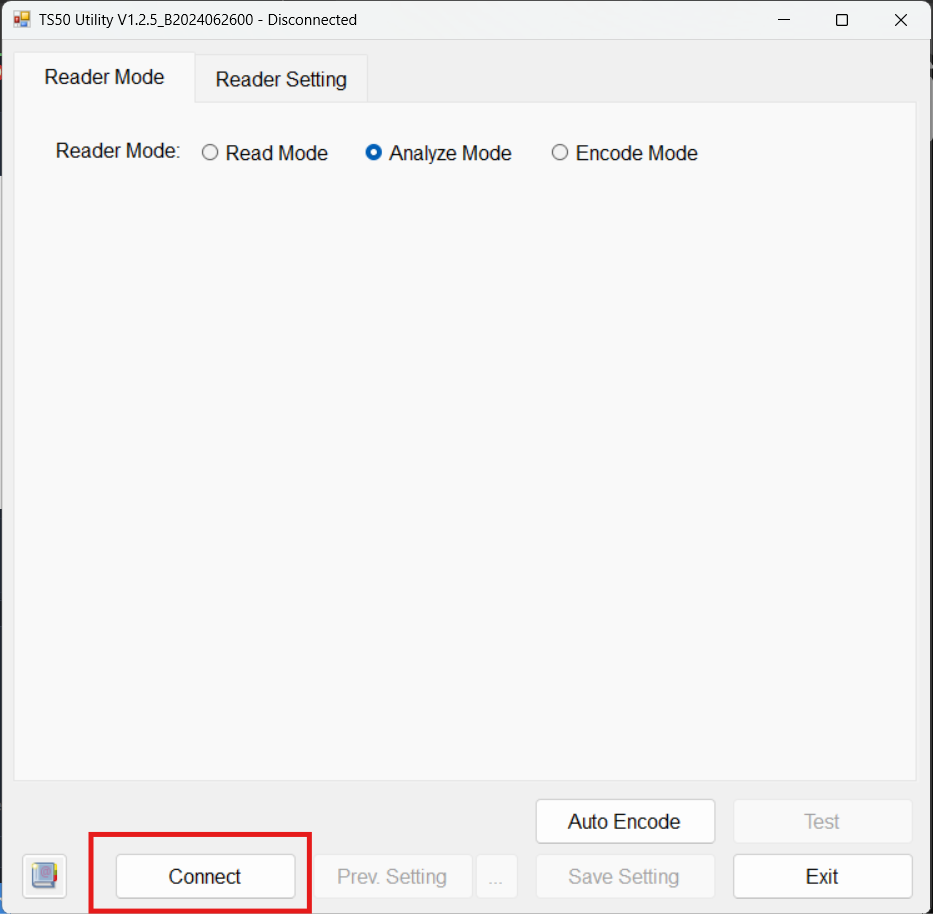

Analyze Mode Setting

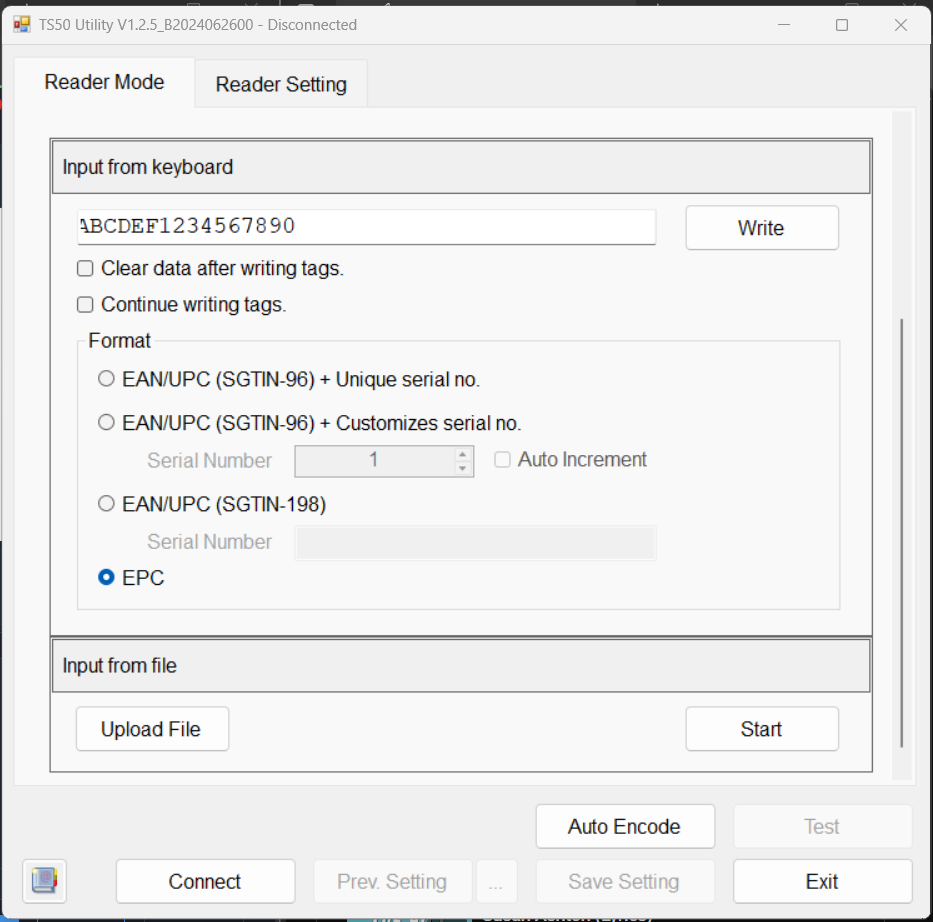

Encode Mode Setting Using Manual Input

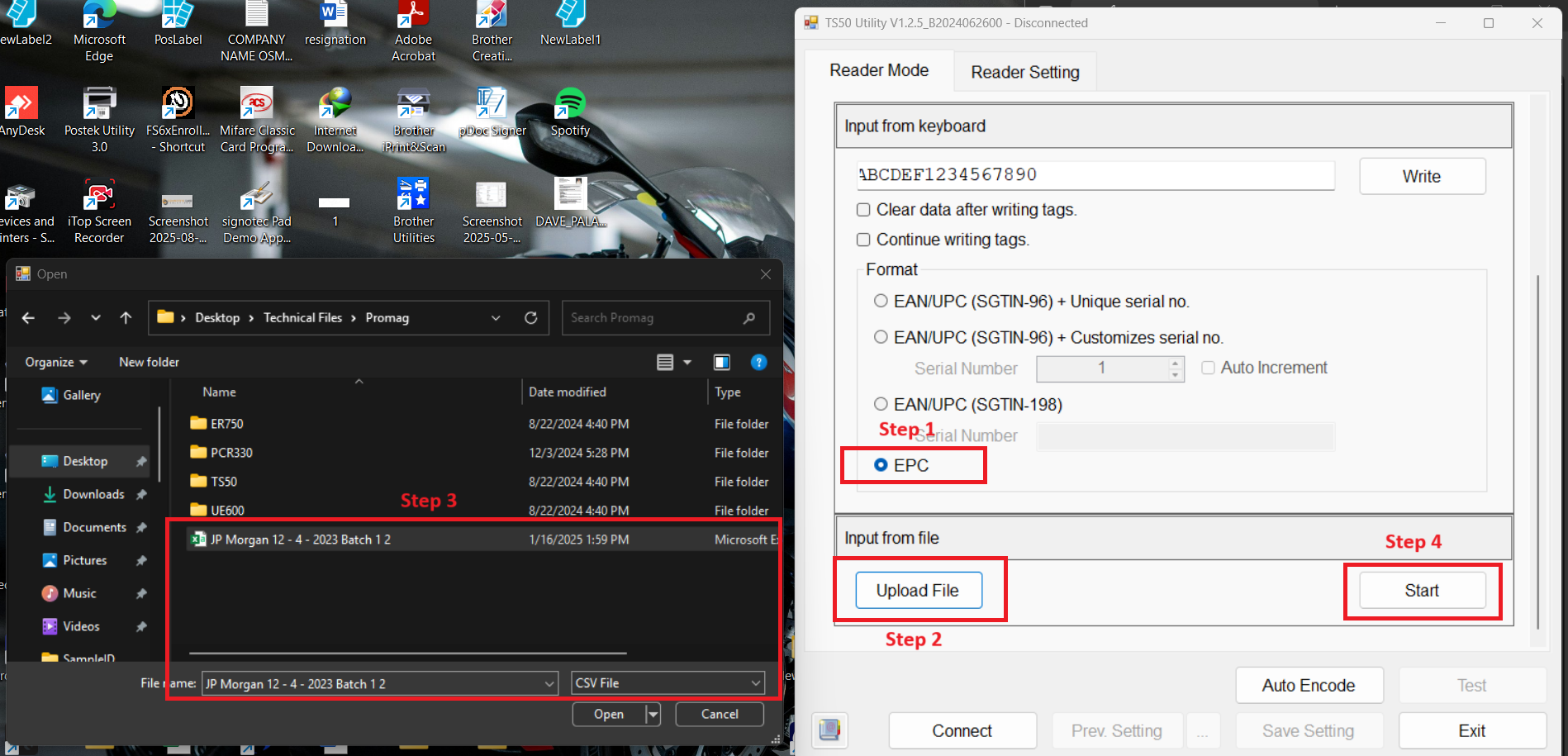

Encode Mode Setting Using Excel file
