How to create guard patrol plan for patrol management system
· Plan
Setup - This is where you put the time schedule of the Tags to be read by
specific guard patrol1. Go to Patrol setup>Plan setup
2. Click

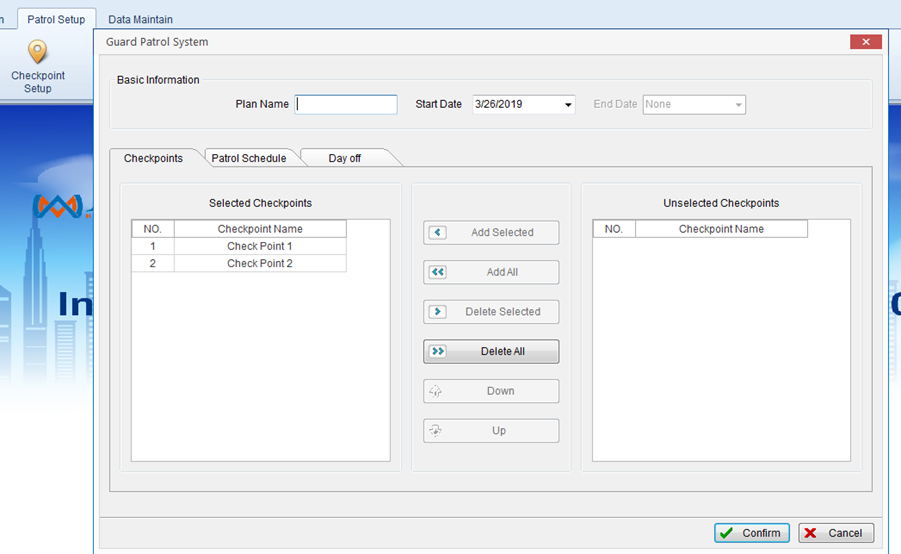

“Add plan” make a plan name, select checkpoints,
3. In
Check point tab, Choose check point or Click “Add all” to select the checkpoint
for this Plan

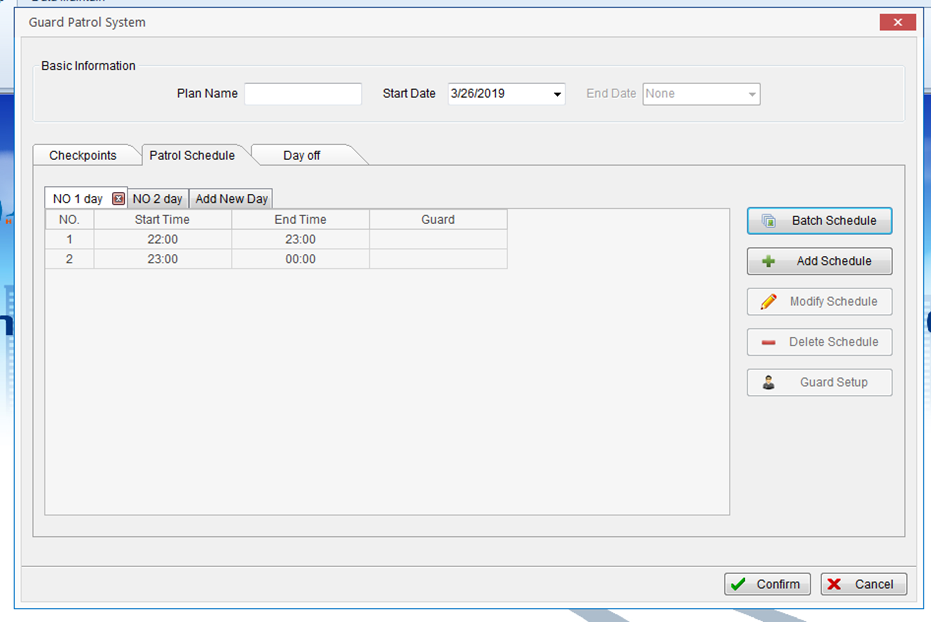

4. Click Patrol Schedule>Batch Schedule
5. Set the Begin Time and End Time
6. In “Time for One Patrol Round” Set the minutes
of every Patrol Round
(Note:
if the time will jump to the following day let say 11:00 pm to 2:00 am click
Next Day)
7. Click
“Confirm”
8. After
the plan is setup make sure to assign a reader by clicking “Assign Reader”
9. Click “Assign Reader”
10. Click
on the Reader Code and Confirm.
~end
