You can connect a compatible DSLR camera to CardExchange Producer to capture photos directly within the software. Follow the steps below to configure your camera and take photos.

Step 1: Connect the DSLR Camera

1. Connect your DSLR camera to the computer using a USB cable.
2. Most compatible DSLR cameras use a USB Mini-B to USB cable.

Note: Check the CardExchange Supported Devices page to confirm whether your camera model is compatible.

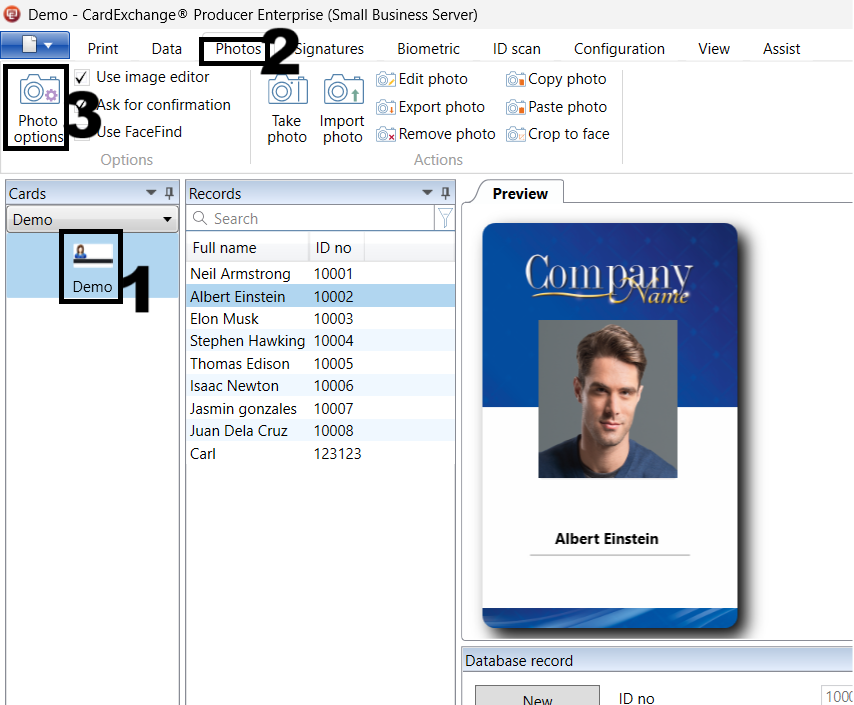

Step 2: Open Photo Options in CardExchange

1. Open CardExchange Producer.
2. Select the template you want to use.
3. Navigate to the Photos tab.
4. Select Photo Options.

Important: Ensure the template's layout has an image field connected to the database and photo folder.

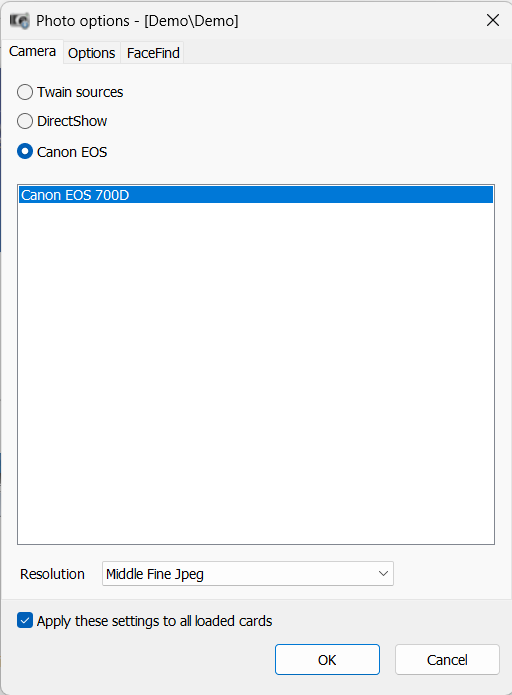

Step 3: Select Your Camera

1. In the camera selection options, select Canon EOS.
2. Find and select your specific camera model.

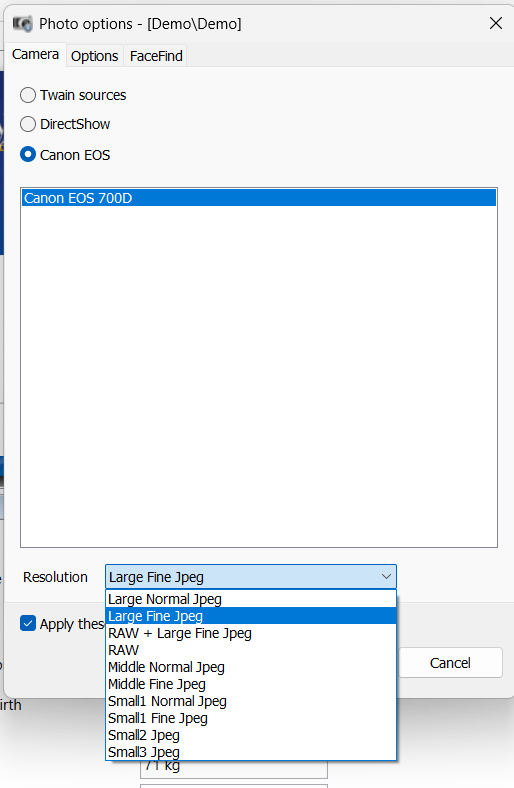

Step 4: Configure the Photo Resolution

1. Choose your preferred photo resolution.
2. Click OK to save your settings.

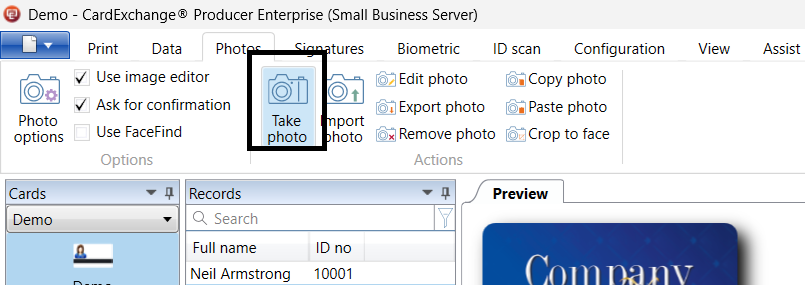

Step 5: Capture a Photo

1. Select Take Photo.
2. Use the connected DSLR camera to capture the photo.

The captured photo should be added to the selected template according to its configuration.

Need More Help?

For additional instructions, visit the official CCS Support guide.
