How to adjust layout for DNP printer

How to adjust layout for DNP printer

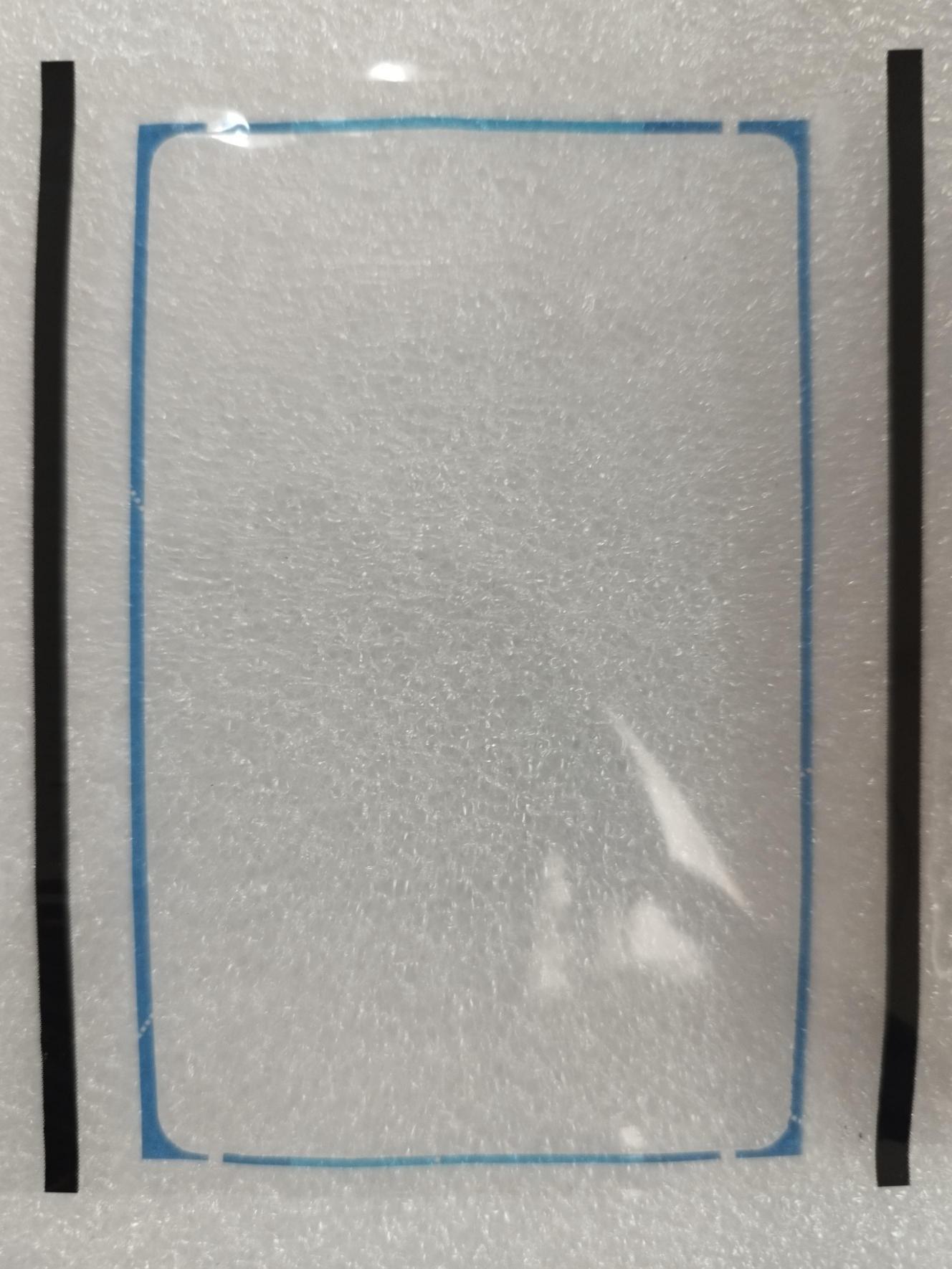

This is an illustration how DNP prints the layout



The DNP Printer cuts the layout and prints only the inner side of the border.
The outter side of the border stays on the retransfer film.



For your layout to be fitted.
Make sure to adjust your layout and add more space on sides (atleast 1mm per side).
