Part 1: Adding Personnel

Follow these steps to register a user and assign an RFID card in the Access Control software.

Step 1: Register an RFID Card

1. Open the Access Control software.

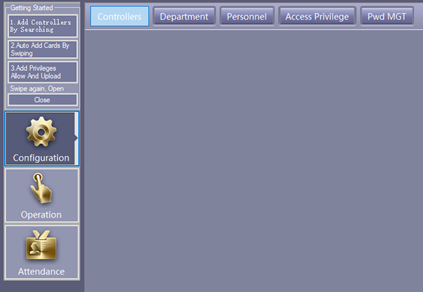

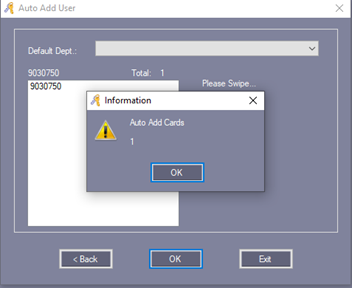

2. Click Auto Add Cards by Swiping at the top-left corner of the window.

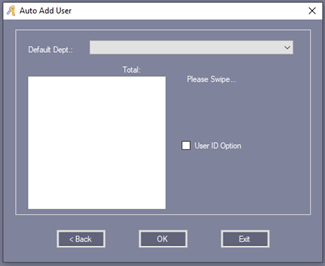

3. Wait for the card registration window to appear.

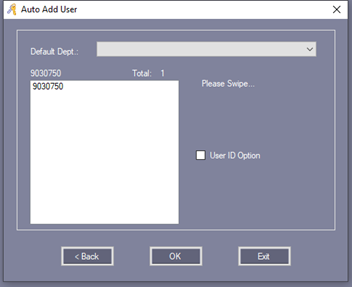

4. Swipe the user's RFID card on the card reader.


5. Click OK to confirm the card registration.


Step 2: Enter Personnel Information

1. Navigate to Configuration.

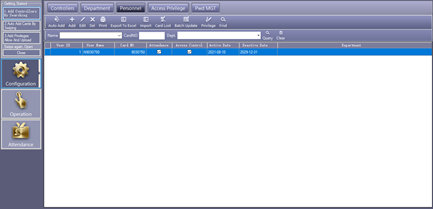

2. Select Personnel to open the personnel management window.


3. Select the user you want to configure.

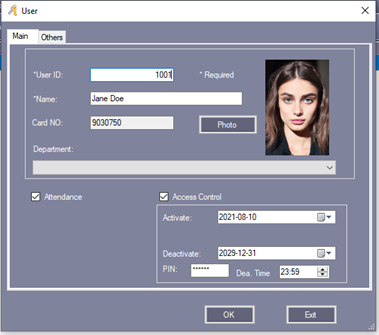

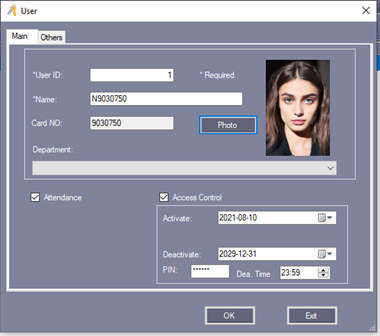

4. Click Edit to open the user's information window.

5. Fill in the required personnel information.


6. Click OK to save the changes.

The personnel record is now configured in the software.

Part 2: Assigning Access Privileges to Personnel

Follow these steps to grant or restrict a user's access to specific doors.

Step 1: Open Access Privilege Settings

1. Navigate to Configurations.

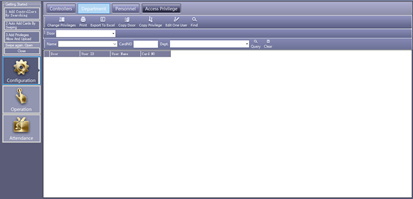

2. Select Access Privilege.


3. Click Change Privilege to open the privilege configuration window.

Step 2: Select the User and Door

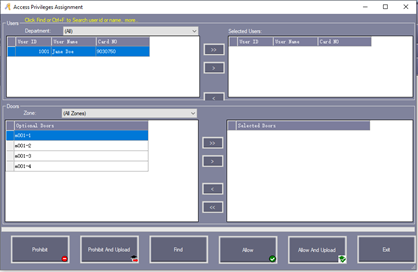

1. Select the user to whom you want to assign access privileges.


2. Select the door for which you want to configure access.

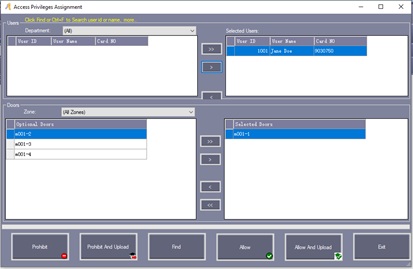

3. Click the appropriate right-arrow buttons to move the selected user and door to the right-hand panel.


Step 3: Apply and Upload the Access Privileges

1. Click Allow and Upload to grant the selected user access, or click Prohibit and Upload to deny access.

2. Ensure that the access control device is connected to the computer before uploading the settings.

Important: The device must be connected to the computer for the access privilege settings to upload successfully.
