How to Enable Color Conversion LUT on the DNP CX-D80
Follow the steps below to enable the Color Conversion Data and configure the Look-Up Table (LUT) for the DNP CX-D80 printer.

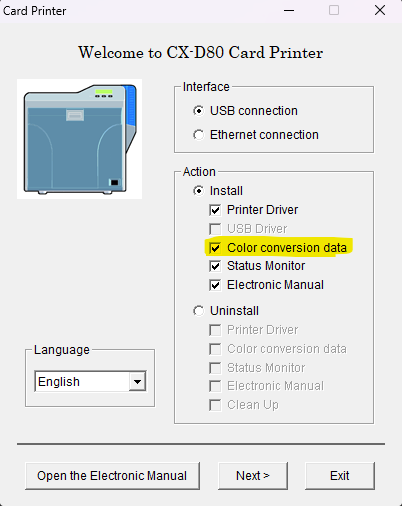

Step 1: Install Color Conversion Data
During the printer driver installation, make sure to install Color Conversion Data.
Step 2: Open Printer Preferences
Open Printer Preferences and check Enable the look-up table.
Step 3: Open Look-Up Table Settings
Select Enable the look-up table settings.
Step 4: Select the LUT File
Click the Select button.
Change the file extension filter from .CSV to .LUT.
Browse to the following location:
C:\Program Files (x86)\DNP\CX-D80 LUT24
Select the following LUT file:
LUT24_B130808A.LUT

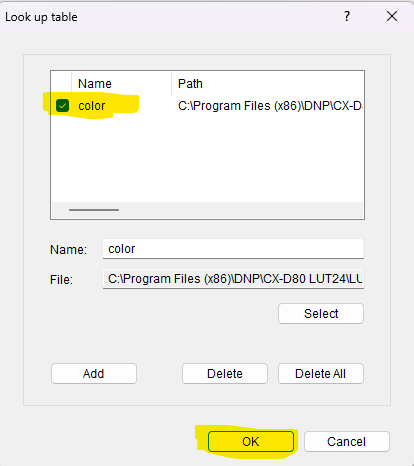

Step 5: Add the LUT
Enter a name of your choice for the color conversion data, then click Add.
Step 6: Confirm the Color Conversion
Check the newly added color conversion and click OK to save the settings.
