AT310 - Adjusting reading sensitivity

AT310 - Adjusting reading sensitivity

1. Connect UHF Reader using "LAN Cable" or "Serial Cable"

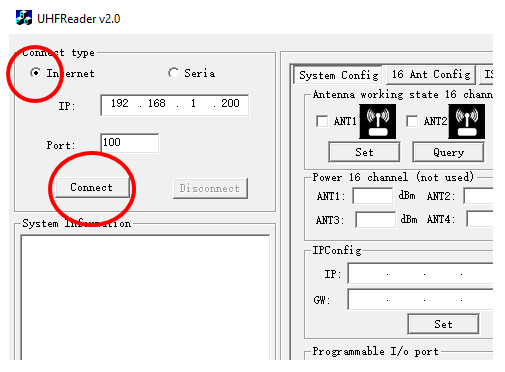

2. If your using "LAN Cable" choose "Internet"

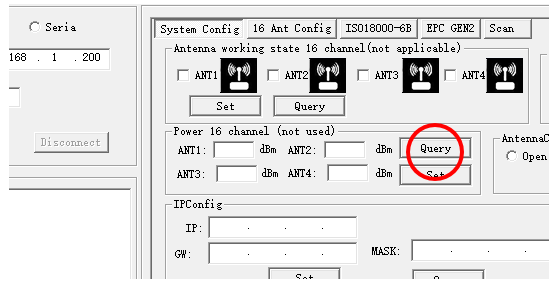

3. Click “Query” Button


4. Change the value of “ANT1”, 30dBm is the maximum value, and then click “Set” button.

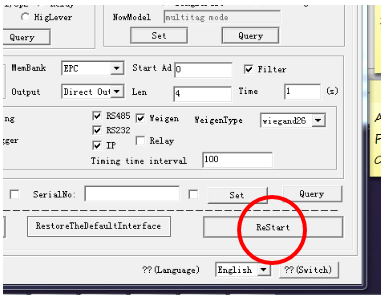

5. Then click “Restart” Button
